Complex Venn Diagram

A Venn diagram with four circles for coffee’s ingredients, and the drinks where they overlap: espresso and milk make a flat white, espresso and water an Americano, espresso, milk and foam a cappuccino or a latte.

  • Try it:
  • Hover a drink or an ingredient
Get the code JavaScript JSON
About this chart

When to draw a bigger Venn diagram

A Venn diagram with several circles shows which combinations exist, not just how two groups overlap: here, which ingredients make which drink. Up to four circles stay readable; beyond that, some overlaps can’t be drawn with circles at all.

Good for

  • Recipes, skills or features and their combinations
  • Showing which overlaps exist and which don’t
  • Explaining a classification

Think twice when

  • Five or more groups: an UpSet-style bar chart works better
  • Exact overlap sizes: circles only approximate them
  • Long names: the small areas have no room for them
For developers

Get the code.

Built with amCharts 5, a JavaScript library. The JavaScript includes your theme and renderer (canvas or SVG); the JSON also follows the changes you make with the controls.

Docs:Venn diagramVenn template fieldsVenn hovers
// Create root and chart
var root = am5.Root.new("chartdiv");

root.setThemes([
  am5themes_Animated.new(root),
  am5themes_Responsive.new(root)
]);

// Create wrapper container
var chart = root.container.children.push(
  am5.SerialChartContainer.new(root, {
    width: am5.p100, // the container fills the whole chart area
    height: am5.p100,
    layout: root.verticalLayout
  })
);

// Create venn series
var series = chart.series.push(
  am5venn.Venn.new(root, {
    categoryField: "name",
    valueField: "value",
    // a row with a "sets" list is the overlap of the circles it names
    intersectionsField: "sets",
    paddingTop: 40, // 40px of room around the circles
    paddingBottom: 40,
    paddingLeft: 40,
    paddingRight: 40
  })
);

// Set tooltip content. The outlines are in the background color, but hidden: the areas meet edge to edge
series.slices.template.setAll({
  tooltipText: "{category}",     // the area's name
  stroke: root.interfaceColors.get("background"),
  strokeWidth: 3,
  strokeOpacity: 0,
  templateField: "sliceSettings" // each area's fill from its sliceSettings
});

// Dark labels on the light areas, white on espresso (in labelSettings), whatever the theme
series.labels.template.setAll({
  textAlign: "center",           // two-line names centered
  fill: am5.color(0x2b1a10),
  templateField: "labelSettings" // a label color from labelSettings, where a row has one
});

// Set up hover appearance: a dashed outline in a color that shows on the light areas and on espresso
series.hoverGraphics.setAll({
  strokeDasharray: [3, 3],
  stroke: am5.color(0xe8743b),
  strokeWidth: 3
});

// Set data
series.data.setAll([
  { name: "Milk", value: 10, sliceSettings: { fill: am5.color(0xcecbc6) }  },
  { name: "Milk foam", value: 10, sliceSettings: { fill: am5.color(0xd1d0ce) }  },
  { name: "Espresso", value: 20, sliceSettings: { fill: am5.color(0x441702) }, labelSettings: { fill: am5.color(0xffffff) } },
  { name: "Water", value: 8, sliceSettings: { fill: am5.color(0xbbcdd7) }  },
  // milk and foam alone make no drink: no label and no tooltip for their overlap
  { name: "", value: 2, sets: ["Milk", "Milk foam"], sliceSettings: { fill: am5.color(0xd2d2d2), tooltipText: "" }  },
  { name: "Flat white", value: 4, sets: ["Milk", "Espresso"], sliceSettings: { fill: am5.color(0xa18b80) }  },
  { name: "Macchiato", value: 4, sets: ["Milk foam", "Espresso"], sliceSettings: { fill: am5.color(0xaba09c) }  },
  { name: "Cappuccino\nLatte", value: 2, sets: ["Milk", "Milk foam", "Espresso"], sliceSettings: { fill: am5.color(0xd1d0ce) }  },
  { name: "Americano", value: 4, sets: ["Water", "Espresso"], sliceSettings: { fill: am5.color(0xa2a19f) }  }
]);

More Miscellaneous demos.

All Miscellaneous demosAll demos

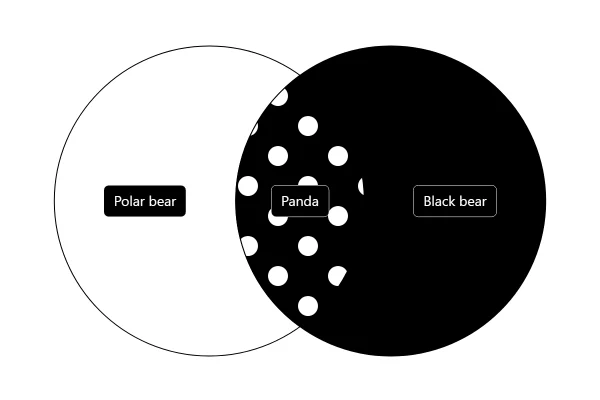

Venn Diagram Venn Diagram with Patterns Packed Circle Chart Chord Diagram
