Drill-Down Treemap

A treemap you explore one level at a time: the first view shows the 18 brands that sold over 200,000 vehicles in the US in 2017, and clicking a brand opens its models. The breadcrumb bar on top leads back.

  • Try it:
  • Click a brand to see its models
  • Use the breadcrumbs to go back
Get the code JavaScript JSON
About this chart

When a drill-down treemap works

Drilling down keeps the first view readable when there are too many items to show at once: here, 18 brands instead of nearly 200 models. Each click trades the overview for detail, and the breadcrumbs keep the way back one click away.

Good for

  • Sales by brand and product
  • Budgets by department and line item
  • Any two-level breakdown with many items

Think twice when

  • Comparing models of different brands: they never share a view
  • Printed reports, where nobody can click
  • Just a few items: a simple treemap shows them all
For developers

Get the code.

Built with amCharts 5, a JavaScript library. The JavaScript includes your theme and renderer (canvas or SVG); the JSON also follows the changes you make with the controls.

Docs:TreemapDrill-downBreadcrumb navigation
// Create root element
// https://www.amcharts.com/docs/v5/getting-started/#Root_element
var root = am5.Root.new("chartdiv");

// a theme of our own, with rules for the treemap's rectangles and labels
const myTheme = am5.Theme.new(root);

myTheme.rule("RoundedRectangle", ["hierarchy", "node", "shape", "depth1"]).setAll({
  strokeWidth: 2 // brand rectangles get a 2px outline
});

myTheme.rule("RoundedRectangle", ["hierarchy", "node", "shape", "depth2"]).setAll({
  fillOpacity: 0,    // model rectangles have no fill: the brand's color shows through...
  strokeWidth: 1,    // ...and thin...
  strokeOpacity: 0.2 // ...faint outlines
});

// brand names are hidden: the brand logos show which brand is which
myTheme.rule("Label", ["node", "depth1"]).setAll({
  forceHidden: true
});

myTheme.rule("Label", ["node", "depth2"]).setAll({
  fontSize: 10 // small model names
});

root.setThemes([
  am5themes_Animated.new(root),
  myTheme,
  am5themes_Responsive.new(root)
]);

// Create wrapper container
var chart = root.container.children.push(
  am5.SerialChartContainer.new(root, {
    width: am5.percent(100),    // fills the whole chart area
    height: am5.percent(100),
    layout: root.verticalLayout // the breadcrumbs above the treemap
  })
);

// Create series
// https://www.amcharts.com/docs/v5/charts/hierarchy/#Adding
var series = chart.series.push(
  am5hierarchy.Treemap.new(root, {
    sort: "descending",  // biggest rectangles first, at the top left
    singleBranchOnly: false,
    // one level at a time: the brands first, then the models of a clicked brand
    downDepth: 1,
    upDepth: 0,
    initialDepth: 1,
    valueField: "value",
    categoryField: "name",
    childDataField: "children",
    nodePaddingOuter: 0, // no space around the rectangles...
    nodePaddingInner: 0  // ...or between them
  })
);
series.nodes.template.setPrivate("trustBounds", true);
series.get("colors").set("step", 1); // each brand takes the next palette color, none skipped

// breadcrumbs above the treemap show where you are and lead back up
chart.children.moveValue(
  am5hierarchy.BreadcrumbBar.new(root, {
    series: series
  }), 0
);

// Generate and set data
// https://www.amcharts.com/docs/v5/charts/hierarchy/#Setting_data
var data = {
  Acura: {
    ILX: 11757,
    MDX: 54886,
    NSX: 581,
    RDX: 51295,
    RLX: 1237,
    TLX: 34846
  },
  "Alfa Romeo": { "4C": 407, Giulia: 8903, Stelvio: 2721 },
  Audi: {
    A3: 20733,
    "A3 e-tron": 2877,
    A4: 37674,
    A5: 21301,
    A6: 16304,
    A7: 4810,
    A8: 3127,
    Q3: 20633,
    Q5: 57640,
    Q7: 38346,
    R8: 772,
    TT: 2294
  },
  Bentley: {
    Bentayga: 1152,
    "Continental GT": 898,
    "Flying Spur": 257,
    Mulsanne: 98
  },
  BMW: {
    "2-Series": 11737,
    "3-Series": 59449,
    "4-Series": 39634,
    "5-Series": 40658,
    "6-Series": 3355,
    "7-Series": 9276,
    i3: 6276,
    i8: 488,
    X1: 30826,
    X3: 40691,
    X4: 5198,
    X5: 50815,
    X6: 6780,
    Z4: 502
  },
  Buick: {
    Cascada: 5595,
    Enclave: 48564,
    Encore: 88035,
    Envision: 41040,
    LaCrosse: 20161,
    Regal: 11559,
    Verano: 4277
  },
  Cadillac: {
    ATS: 13100,
    CT6: 10542,
    CTS: 10344,
    ELR: 17,
    Escalade: 37694,
    SRX: 156,
    XT5: 68312,
    XTS: 16275
  },
  Chevrolet: {
    Bolt: 23297,
    Camaro: 67940,
    "Caprice PPV": 693,
    "City Express": 8348,
    Colorado: 112996,
    Corvette: 25079,
    Cruze: 184751,
    Equinox: 290458,
    Express: 69164,
    Impala: 75877,
    Malibu: 185857,
    Silverado: 585864,
    Sonic: 30290,
    Spark: 22589,
    SS: 4055,
    Suburban: 56516,
    Tahoe: 98961,
    Traverse: 123506,
    Trax: 79289,
    Volt: 20349
  },
  Chrysler: { 200: 18457, 300: 51237, Pacifica: 118274, "Town & Country": 577 },
  Dodge: {
    Avenger: 14,
    Challenger: 64537,
    Charger: 88351,
    Dart: 10082,
    Durango: 68761,
    "Grand Caravan": 125196,
    Journey: 89470,
    Viper: 585,
    "RAM P/U": 500723,
    "RAM ProMaster": 40483,
    "RAM ProMaster City": 15584
  },
  Fiat: { "124 Spider": 4478, 500: 12685, "500L": 1664, "500X": 7665 },
  Ford: {
    "C-Max": 18390,
    Edge: 142603,
    Escape: 308296,
    "E-Series": 53304,
    Expedition: 51883,
    Explorer: 271131,
    Fiesta: 46249,
    Flex: 22389,
    Focus: 158385,
    "F-Series": 896764,
    Fusion: 209623,
    GT: 89,
    Mustang: 81866,
    Taurus: 41236,
    Transit: 127360,
    "Transit Connect": 34473
  },
  Genesis: { G80: 16196, G90: 4398 },
  GMC: {
    Acadia: 111276,
    Canyon: 32106,
    Savana: 29679,
    Sierra: 217943,
    Terrain: 85441,
    Yukon: 49183,
    "Yukon XL": 35059
  },
  Honda: {
    Accord: 322655,
    Civic: 377286,
    "Clarity FCV": 2455,
    Crosstour: 5,
    "CR-V": 377895,
    "CR-Z": 705,
    Fit: 49454,
    "HR-V": 94034,
    Insight: 3,
    Odyssey: 100307,
    Pilot: 127279,
    Ridgeline: 34749
  },
  Hyundai: {
    Accent: 58955,
    Azera: 3060,
    Elantra: 198210,
    Equus: 20,
    Genesis: 1152,
    Ioniq: 11197,
    "Santa Fe": 133171,
    Sonata: 131803,
    Tucson: 114735,
    Veloster: 12658
  },
  Infiniti: {
    Q50: 40739,
    Q60: 10751,
    Q70: 5772,
    QX30: 14093,
    QX50: 16857,
    QX60: 40444,
    QX70: 6878,
    QX80: 17881
  },
  Jaguar: { "F-Pace": 18946, "F-Type": 4108, XE: 9278, XF: 4541, XJ: 2721 },
  Jeep: {
    Cherokee: 169882,
    Compass: 83253,
    "Grand Cherokee": 240696,
    Patriot: 10735,
    Renegade: 103434,
    Wrangler: 190522
  },
  Kia: {
    Cadenza: 7249,
    Forte: 117596,
    K900: 455,
    Niro: 27237,
    Optima: 107493,
    Rio: 16760,
    Sedona: 23815,
    Sorento: 99684,
    Soul: 115712,
    Sportage: 72824,
    Stinger: 843
  },
  "Land Rover": {
    "Discovery / LR4": 6398,
    "Discovery Sport": 14187,
    "Range Rover": 16869,
    "Range Rover Evoque": 11979,
    "Range Rover Sport": 19153,
    "Range Rover Velar": 6153
  },
  Lexus: {
    CT: 4690,
    ES: 51398,
    GS: 7773,
    GX: 27190,
    IS: 26482,
    LC: 2487,
    LFA: 3,
    LS: 4094,
    LX: 6004,
    NX: 59341,
    RC: 7363,
    RX: 108307
  },
  Lincoln: {
    Continental: 12012,
    MKC: 27048,
    MKS: 153,
    MKT: 3005,
    MKX: 31031,
    MKZ: 27387,
    Navigator: 10523
  },
  Maserati: {
    Ghibli: 5531,
    GranTurismo: 1018,
    Levante: 5448,
    Quattroporte: 1700
  },
  Mazda: {
    3: 75018,
    5: 10,
    6: 33402,
    "CX-3": 16355,
    "CX-5": 127563,
    "CX-9": 25828,
    "MX-5 Miata": 11294
  },
  "Mercedes-Benz": {
    "B-Class": 744,
    "C-Class": 77447,
    "CLA-Class": 20669,
    "E / CLS-Class": 51312,
    "G-Class": 4188,
    "GLA-Class": 24104,
    "GLC-Class": 48643,
    "GLE-Class": 54595,
    "GLS-Class": 32248,
    Metris: 7579,
    "S-Class": 15888,
    "SLC-Class": 2860,
    "SL-Class": 2940,
    Sprinter: 27415
  },
  Mini: { Cooper: 32232, Countryman: 14864, Paceman: 9 },
  Mitsubishi: {
    "i MiEV": 6,
    Lancer: 12725,
    Mirage: 22386,
    Outlander: 35310,
    "Outlander PHEV": 99,
    "Outlander Sport": 33160
  },
  Nissan: {
    "370Z": 4614,
    Altima: 254996,
    Armada: 35667,
    Frontier: 74360,
    "GT-R": 578,
    Juke: 10157,
    Leaf: 11230,
    Maxima: 67627,
    Murano: 76732,
    NV: 17858,
    NV200: 18602,
    Pathfinder: 81065,
    Quest: 4950,
    Rogue: 403465,
    Sentra: 218451,
    Titan: 52924,
    Versa: 106772,
    Xterra: 1
  },
  Porsche: {
    911: 8970,
    Boxster: 2287,
    Cayenne: 13203,
    Cayman: 2800,
    Macan: 21429,
    Panamera: 6431
  },
  Smart: { Fortwo: 3071 },
  Subaru: {
    BRZ: 4131,
    Crosstrek: 110138,
    Forester: 177563,
    Impreza: 117401,
    Legacy: 49837,
    Outback: 188886
  },
  Tesla: { "Model 3": 2320, "Model S †": 28800, "Model X †": 24000 },
  Toyota: {
    "4Runner": 128296,
    "86/Scion FR-S": 6846,
    Avalon: 32583,
    Camry: 387081,
    "C-HR": 25755,
    Corolla: 329196,
    "FJ Cruiser": 4,
    Highlander: 215775,
    "Land Cruiser": 3100,
    Mirai: 1838,
    Prius: 108662,
    RAV4: 407594,
    Sequoia: 12156,
    Sienna: 111489,
    Tacoma: 198124,
    Tundra: 116285,
    Venza: 14,
    Yaris: 44380
  },
  Volkswagen: {
    Atlas: 27119,
    Beetle: 15166,
    CC: 1355,
    Eos: 1,
    Golf: 68978,
    Jetta: 115807,
    Passat: 60722,
    Tiguan: 46983,
    Touareg: 3545
  },
  Volvo: { S60: 16825, S80: 7, S90: 11090, XC60: 22516, XC90: 30996 }
};

// turns the brand > model sales object into a tree of children, biggest brands first
function processData(data) {
  var treeData = [];


  am5.object.eachOrdered(
    data,
    (brand) => {
      var brandData = { name: brand, children: [] };
      var brandTotal = 0;
      for (var model in data[brand]) {
        brandTotal += data[brand][model];
      }

      for (var model in data[brand]) {
        // do not add very small
        if (data[brand][model] > 100) {
          brandData.children.push({ name: model, value: data[brand][model] });
        }
      }

      // only bigger brands
      if (brandTotal > 200000) {
        treeData.push(brandData);
      }
    },
    (a, b) => { // brands in order of total sales, biggest first
      let aval = 0;
      let bval = 0;
      am5.object.each(data[a], (key, val) => (aval += val));
      am5.object.each(data[b], (key, val) => (bval += val));
      if (aval > bval) return -1;
      if (aval < bval) return 1;
      return 0;
    }
  );

  return [{
    name: "Home",
    children: treeData
  }];
}

series.data.setAll(processData(data));
series.set("selectedDataItem", series.dataItems[0]); // start at the top, with the breadcrumbs showing "Home"

// a faint brand logo in the middle of each brand's rectangle
series.bullets.push(function (root, series, dataItem) {
  var depth = dataItem.get("depth");

  if (depth == 1) {
    var picture = am5.Picture.new(root, {
      src: "https://www.amcharts.com/wp-content/uploads/assets/logos/" + dataItem.dataContext.name.toLowerCase() + ".png",
      centerX: am5.p50,       // the logo's middle on the rectangle's middle
      centerY: am5.p50,
      width: am5.percent(30), // 30% of the rectangle's width
      isMeasured: true
    });

    picture.states.lookup("default").setAll({ opacity: 0.15 }); // faint, so the model names read over it

    return am5.Bullet.new(root, { sprite: picture });
  }
});

More Hierarchy demos.

All Hierarchy demosAll demos

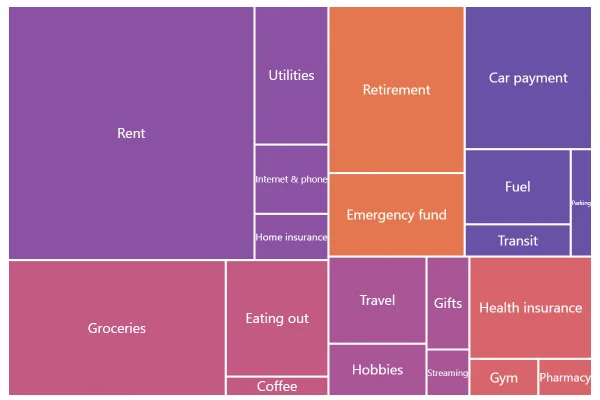

Zoomable Multilevel Tree Map Simple Treemap Drill-Down Sunburst Chart Rectangular Drill-Down Voronoi Tree Map
