Force-Directed Network

A network graph: nodes joined by lines, laid out by forces that push them apart and pull linked ones together. Here, three separate trees held together by two cross-links.

  • Try it:
  • Drag a node: the network follows
  • Click a node to fold its branch
Get the code JavaScript JSON
About this chart

Trees with cross-links

Real structures are rarely pure trees: one team works with another, one page links to another section. Cross-links add those connections on top of the hierarchy, and the forces pull the linked groups together, so clusters and the bridges between them show up on their own.

Good for

  • Teams or systems that depend on each other
  • Site sections that link across
  • Clusters and the links that bridge them

Think twice when

  • Dense networks with many cross-links: they tangle fast
  • Reading exact values: node size is only a rough guide
  • A strict hierarchy: a tree chart is easier to follow
For developers

Get the code.

Built with amCharts 5, a JavaScript library. The JavaScript includes your theme and renderer (canvas or SVG); the JSON also follows the changes you make with the controls.

Docs:Force-directed treeCross-linking nodesLayout and force simulation
// Create root element
// https://www.amcharts.com/docs/v5/getting-started/#Root_element
var root = am5.Root.new("chartdiv");

// Set themes
// https://www.amcharts.com/docs/v5/concepts/themes/
root.setThemes([
  am5themes_Animated.new(root),
  am5themes_Responsive.new(root)
]);

var data = {
  name: "Root",
  value: 0,
  children: [
    {
      name: "1",
      linkWith: ["2"],
      children: [
        {
          name: "A",
          children: [
            { name: "A1", value: 1 },
            { name: "A2", value: 1 },
            { name: "A3", value: 1 },
            { name: "A4", value: 1 },
            { name: "A5", value: 1 }
          ]
        },
        {
          name: "B",
          children: [
            { name: "B1", value: 1 },
            { name: "B2", value: 1 },
            { name: "B3", value: 1 },
            { name: "B4", value: 1 },
            { name: "B5", value: 1 }
          ]
        },
        {
          name: "C",
          children: [
            { name: "C1", value: 1 },
            { name: "C2", value: 1 },
            { name: "C3", value: 1 },
            { name: "C4", value: 1 },
            { name: "C5", value: 1 }
          ]
        }
      ]
    },

    {
      name: "2",
      linkWith: ["3"],
      children: [
        {
          name: "D", value:1
        },
        {
          name: "E", value:1
        }
      ]
    },
    {
      name: "3",
      children: [
        {
          name: "F",
          children: [
            { name: "F1", value: 1 },
            { name: "F2", value: 1 },
            { name: "F3", value: 1 },
            { name: "F4", value: 1 },
            { name: "F5", value: 1 }
          ]
        },
        {
          name: "H",
          children: [
            { name: "H1", value: 1 },
            { name: "H2", value: 1 },
            { name: "H3", value: 1 },
            { name: "H4", value: 1 },
            { name: "H5", value: 1 }
          ]
        },
        {
          name: "G",
          children: [
            { name: "G1", value: 1 },
            { name: "G2", value: 1 },
            { name: "G3", value: 1 },
            { name: "G4", value: 1 },
            { name: "G5", value: 1 }
          ]
        }
      ]
    }
  ]
};

// Create wrapper container
var chart = root.container.children.push(
  am5.SerialChartContainer.new(root, {
    width: am5.percent(100), // fills the whole chart area
    height: am5.percent(100),
    layout: root.verticalLayout
  })
);

// Create series
// https://www.amcharts.com/docs/v5/charts/hierarchy/#Adding
var series = chart.series.push(
  am5hierarchy.ForceDirected.new(root, {
    singleBranchOnly: false,
    downDepth: 1,          // a click opens one more level
    // the root node isn't drawn: nodes 1, 2 and 3 are the tops of their own trees
    topDepth: 1,
    maxRadius: 25,         // the biggest circles 25px...
    minRadius: 12,         // ...the smallest 12px
    valueField: "value",
    categoryField: "name",
    childDataField: "children",
    // linkWith in the data lists other nodes by name (the idField) to link to across the trees
    idField: "name",
    linkWithStrength: 0.3, // how strongly those links pull (the default is 0.5)
    linkWithField: "linkWith",
    manyBodyStrength: -15, // the circles push each other away...
    centerStrength: 0.5    // ...and are pulled toward the middle
  })
);

series.get("colors").set("step", 2); // each new color skips one in the palette, for more contrast

// A soft shadow under each circle
series.circles.template.setAll({
  shadowColor: am5.color(0x000000),
  shadowOpacity: 0.3,
  shadowBlur: 6,
  shadowOffsetX: 2,
  shadowOffsetY: 2
});

series.data.setAll([data]);
series.set("selectedDataItem", series.dataItems[0]); // start with the root selected, so the trees show

// Make stuff animate on load
series.appear(1000, 100);

More Hierarchy demos.

All Hierarchy demosAll demos

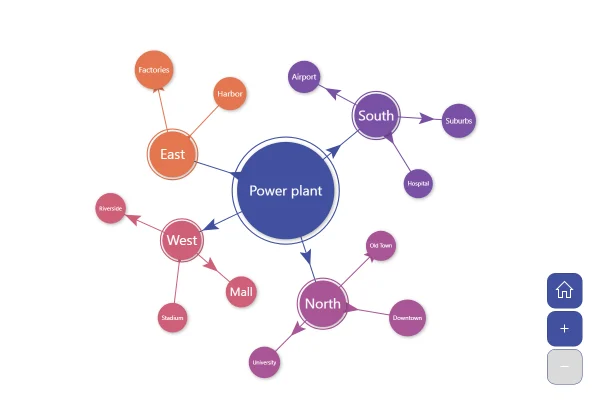

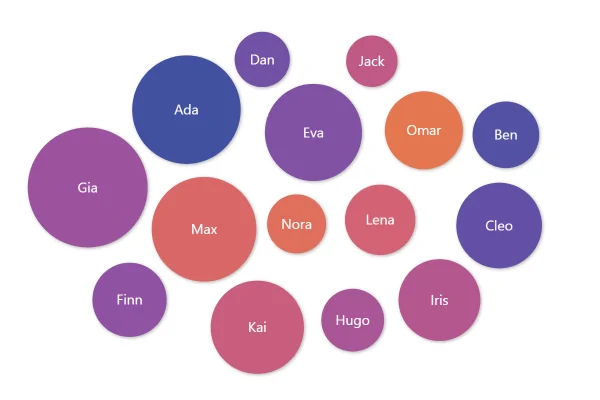

Force-Directed Adding Links Force-Directed Tree Collapsible Force-Directed Tree Force-Directed Tree with Animated Bullets
