Radial Ridgeline Chart

A year of a solar array's output as twelve rings, each a month's average day: midnight at the bottom, noon at the top. The latest month is in color and the eleven before it in gray, so it shows at a glance how this month compares with the rest of the year.

  • Try it:
  • Point at a ring for the month's average
  • Drag Ridge height to raise the peaks
Get the code JavaScript React, Vue, Angular, Svelte JSON
About this chart

When a radial ridgeline works

A ridgeline stacks many curves of the same kind, each lifted off a baseline of its own, so they can overlap without hiding each other's shape. Bent into rings, it suits anything that runs round a clock: each hour sits at the same angle on every ring, so a year of daily patterns shows in one view, and one ring in color stands out against the rest.

Good for

  • Daily patterns: energy, traffic, visits by hour
  • Many similar curves where the shape matters
  • Spotting the days that break a pattern

Think twice when

  • Exact values: a line chart is easier to read
  • A few series: plain lines are clearer
  • Data with no daily or yearly cycle
For developers

Get the code.

Built with amCharts 5, a JavaScript library. The JavaScript includes your theme and renderer (canvas or SVG); the JSON also follows the changes you make with the controls.

Docs:Radar chartDate axisAxis rangesOne tooltip at a time
// Create root element
// https://docs.amcharts.com/v5/getting-started/#root-element
var root = am5.Root.new("chartdiv");

// Set themes
// https://docs.amcharts.com/v5/concepts/themes/
var responsive = am5themes_Responsive.new(root); // kept in a variable: a rule of its own is added below
root.setThemes([
  am5themes_Animated.new(root),
  responsive
]);


// ── Sample data: a year of output from a 10 kW solar array at 48° north (Munich, Paris), every 15 minutes ──

var CAPACITY = 10; // the array's top output, kW
var STEPS = 96;    // fifteen-minute steps a day

// A seeded random number generator (mulberry32): the same clouds on every visit
function makeRandom(seed) {
  return function() {
    seed = seed + 0x6D2B79F5 | 0;
    var t = Math.imul(seed ^ seed >>> 15, 1 | seed);
    t = t + Math.imul(t ^ t >>> 7, 61 | t) ^ t;
    return ((t ^ t >>> 14) >>> 0) / 4294967296;
  };
}

// One day's output, kW, every 15 minutes: the sun's path on that date, dented by the day's clouds and by the month's
// weather (makeYear)
function makeDay(date, random, weather) {
  // the day's length and how high the sun gets at noon follow the date
  var dayOfYear = (date - new Date(date.getFullYear(), 0, 0)) / 864e5;
  var declination = 23.44 * Math.sin(2 * Math.PI * (284 + dayOfYear) / 365) * Math.PI / 180;
  var latitude = 48 * Math.PI / 180;
  var halfDay = Math.acos(-Math.tan(latitude) * Math.tan(declination)) * 12 / Math.PI; // hours from sunrise to noon
  var noon = 12.4; // the sun is highest a little after 12:00 on the clock
  var rise = noon - halfDay;
  var set = noon + halfDay;
  // the share of the capacity a clear noon gives: all of it in June, about a third in December
  var peak = Math.min(1, Math.sin(Math.PI / 2 - latitude + declination) / Math.sin(62 * Math.PI / 180));

  // the sky: half the days clear, a third broken, the rest grey
  var r = random();
  var sky = r < 0.5 ? 0.92 + 0.08 * random() : r < 0.82 ? 0.7 + 0.2 * random() : 0.2 + 0.3 * random();
  // passing clouds, each a dent in the curve: light ones on a clear day, deeper on the others
  var clouds = [];
  var count = sky > 0.9 ? 1 + Math.floor(random() * 2) : 2 + Math.floor(random() * 4);
  for (var i = 0; i < count; i++) {
    clouds.push({
      hour: rise + 1.2 + random() * (set - rise - 2.4), // when it passes
      width: 0.25 + random() * 0.6,                     // how long it takes, hours
      depth: sky > 0.9 ? 0.15 + random() * 0.3 : 0.3 + random() * 0.5 // the share of light it takes away
    });
  }
  // the month's recurring clouds (morning fog, afternoon storms...), a little earlier or later and stronger or weaker
  // from day to day, so they still show in the month's average
  weather.clouds.forEach(function(cloud) {
    clouds.push({
      hour: cloud.hour + (random() - 0.5) * 0.8,
      width: cloud.width,
      depth: Math.min(0.9, cloud.depth * (0.5 + random()))
    });
  });

  var output = [];
  for (var step = 0; step < STEPS; step++) {
    var hour = step * 24 / STEPS;
    // a clear day's curve: zero at night, rising to the noon peak
    var clear = hour > rise && hour < set ? Math.pow(Math.sin(Math.PI * (hour - rise) / (set - rise)), 1.25) * peak : 0;
    var light = sky * weather.sky; // the day's sky in the month's light
    clouds.forEach(function(cloud) {
      light *= 1 - cloud.depth * Math.exp(-Math.pow((hour - cloud.hour) / cloud.width, 2));
    });
    output.push(CAPACITY * clear * light);
  }
  return output;
}

// The average day of each of the twelve months to October 2026, oldest first: for every 15-minute step, the output of
// all the month's days added up and divided by their number
var FIRST_MONTH = new Date(2025, 10, 1); // November 2025
function makeYear() {
  var random = makeRandom(7);
  var months = [];
  for (var m = 0; m < 12; m++) {
    var start = new Date(FIRST_MONTH.getFullYear(), FIRST_MONTH.getMonth() + m, 1);
    var count = new Date(start.getFullYear(), start.getMonth() + 1, 0).getDate(); // the month's last day
    // the month's own weather: two to four cloud times that come back most days, and how bright the month is overall
    var weather = { sky: 0.75 + 0.25 * random(), clouds: [] };
    var times = 2 + Math.floor(random() * 3);
    for (var c = 0; c < times; c++) {
      weather.clouds.push({ hour: 7 + random() * 11, width: 0.4 + random() * 0.8, depth: 0.25 + random() * 0.35 });
    }
    var sum = [];
    for (var day = 1; day <= count; day++) {
      makeDay(new Date(start.getFullYear(), start.getMonth(), day), random, weather).forEach(function(kW, step) {
        sum[step] = (sum[step] || 0) + kW;
      });
    }
    months.push({ date: start, output: sum.map(function(kW) { return kW / count; }) });
  }
  return months;
}
var months = makeYear();


// ── The chart: one ring a month ──

// Create chart
// https://docs.amcharts.com/v5/charts/radar-chart/
var chart = root.container.children.push(am5radar.RadarChart.new(root, {
  panX: false,    // no dragging...
  panY: false,
  wheelX: "none", // ...or zooming with the wheel
  wheelY: "none",
  startAngle: 90, // midnight at the bottom...
  endAngle: 450,  // ...and the full circle round, so noon is at the top
  radius: am5.percent(92),      // most of the space, leaving just room for the hour labels
  innerRadius: am5.percent(20), // the first months get room to swell, clear of the middle
  maxTooltipDistance: 1 // only the tooltip of the line nearest the pointer, not one for every month
}));

// Create axes
// https://docs.amcharts.com/v5/charts/radar-chart/radar-axes/
// The hours of the day round the circle: a date axis over one day. Every ring takes its times on that same day,
// so 13:00 is at the same angle on every ring
var DAY = new Date(2026, 0, 1).getTime(); // any day without a clock change
var xRenderer = am5radar.AxisRendererCircular.new(root, {
  minGridDistance: 40 // labels at least 40px apart round the rim
});
xRenderer.labels.template.setAll({
  multiLocation: 0,    // each hour at its spoke, not between two
  textType: "regular", // upright, not turned along the circle
  radius: 16,          // out from the rim, clear of the highest noon
  maxPosition: 0.99    // the day's end is its start: one 00:00, not two on top of each other
});
xRenderer.grid.template.setAll({
  strokeOpacity: 0.08 // faint spokes, so they don't cut through the lines
});
var xAxis = chart.xAxes.push(am5xy.DateAxis.new(root, {
  baseInterval: { timeUnit: "minute", count: 15 }, // the data comes every 15 minutes
  gridIntervals: [{ timeUnit: "hour", count: 3 }], // a spoke every three hours
  min: DAY,
  max: DAY + 864e5, // midnight to midnight
  strictMinMax: true,
  markUnitChange: false, // midnight shows 00:00 like every other hour, not the date of a new day
  renderer: xRenderer
}));

// The rings go out from the middle, one value unit a month. The values place the lines but mean nothing to a reader,
// so the axis shows no numbers or grid: only each ring's month (below)
var yRenderer = am5radar.AxisRendererRadial.new(root, {
  axisAngle: 90 // the axis runs down to midnight, where every ring lies flat on its own value
});
yRenderer.labels.template.set("forceHidden", true);
yRenderer.grid.template.set("forceHidden", true);
var yAxis = chart.yAxes.push(am5xy.ValueAxis.new(root, {
  min: 0,             // the first month's ring is one unit out from the hole
  strictMinMax: true, // the rim is the highest noon, not rounded up to a round number
  renderer: yRenderer
}));

// Create series
// https://docs.amcharts.com/v5/charts/radar-chart/radar-series/
// One line a month, the oldest nearest the middle and the latest at the rim. A month's output lifts its line off its
// own ring, so a summer noon swells out over the rings after it: a radial ridgeline. The latest month takes the
// theme's first color; the eleven before it are gray lines, for comparison
var gray = root.interfaceColors.get("alternativeBackground");
var ridgeHeight = 10; // a noon at full capacity swells out over this many rings
var lines = [];
var monthLabels = [];
months.forEach(function(month, index) {
  var latest = index === months.length - 1;
  var settings = {
    name: root.dateFormatter.format(month.date, "MMMM yyyy"), // for the tooltip
    xAxis: xAxis,
    yAxis: yAxis,
    valueXField: "time",
    valueYField: "value",
    tooltip: am5.Tooltip.new(root, {
      labelText: "[bold]{name}[/]\nAverage at {valueX.formatDate('HH:mm')}: {power} kW"
    })
  };
  // gray for the earlier months; the latest is given no color, so it takes the theme's first
  if (!latest) {
    settings.stroke = gray;
    settings.fill = gray;
  }
  var series = chart.series.push(am5radar.SmoothedRadarLineSeries.new(root, settings));
  series.strokes.template.setAll({
    strokeWidth: latest ? 2.5 : 1.5,    // the latest month stands out (a 1px line is too thin to point at)
    strokeOpacity: latest ? 1 : 0.45,   // the gray lines are quieter
    interactive: true                   // the line takes the pointer, for its hover state
  });
  // the line under the pointer turns blue and thicker, which also makes it easier to stay on
  series.strokes.template.states.create("hover", {
    stroke: am5.color(0x2d7ff9),
    strokeWidth: 3.5,
    strokeOpacity: 1
  });
  lines.push(series);

  // The month's name on its ring at midnight, on the radial axis at the bottom, with a backing in the chart's
  // background color so the ring passes behind it
  // https://docs.amcharts.com/v5/charts/xy-chart/axes/axis-ranges/
  var range = yAxis.createAxisRange(yAxis.makeDataItem({ value: index + 1 }));
  range.get("label").setAll({
    forceHidden: false, // the axis' own labels are hidden; this one shows
    text: root.dateFormatter.format(month.date, "MMM"),
    fontSize: "0.75em",
    fontWeight: latest ? "700" : "400",
    centerX: am5.p50,
    centerY: am5.p50,
    paddingTop: 1,
    paddingBottom: 1,
    paddingLeft: 3,
    paddingRight: 3,
    background: am5.RoundedRectangle.new(root, {
      fill: root.interfaceColors.get("background"),
      fillOpacity: 1
    })
  });
  range.get("grid").set("forceHidden", true);
  monthLabels.push(range.get("label"));
});

// On a narrow chart (a phone) the rings are too close for every month's name: only every third month keeps its label
// (January, April, July and October). The rule is undone on a wider chart
responsive.addRule({
  relevant: function(width) { return width < 600; }, // the chart is under 600px wide
  applying: function() {
    monthLabels.forEach(function(label, index) {
      label.set("forceHidden", (index + 1) % 3 !== 0);
    });
  },
  removing: function() {
    monthLabels.forEach(function(label) {
      label.set("forceHidden", false);
    });
  }
});

// Add cursor
// https://docs.amcharts.com/v5/charts/xy-chart/cursor/
// A spoke follows the pointer, and the tooltip of the month nearest to it shows
var cursor = chart.set("cursor", am5radar.RadarCursor.new(root, {}));
cursor.lineY.set("visible", false); // no circle round the middle: the hovered line marks the month


// ── Drawing the year ──

// Each line's points: the month's ring plus its average output scaled to the ridge height. The times are on the
// axis's day
function lineData(index, month) {
  return month.output.map(function(kW, step) {
    return {
      time: DAY + step * 9e5, // 15 minutes apart
      value: Math.round((index + 1 + ridgeHeight * kW / CAPACITY) * 100) / 100, // two decimals are plenty to draw
      power: Math.round(kW * 10) / 10 // for the tooltip
    };
  });
}

function drawLines() {
  lines.forEach(function(series, index) {
    series.data.setAll(lineData(index, months[index]));
  });
}

drawLines();

// Make stuff animate on load
// https://docs.amcharts.com/v5/concepts/animations/
chart.appear(1000, 100);

More Radar & Polar demos.

All Radar & Polar demosAll demos

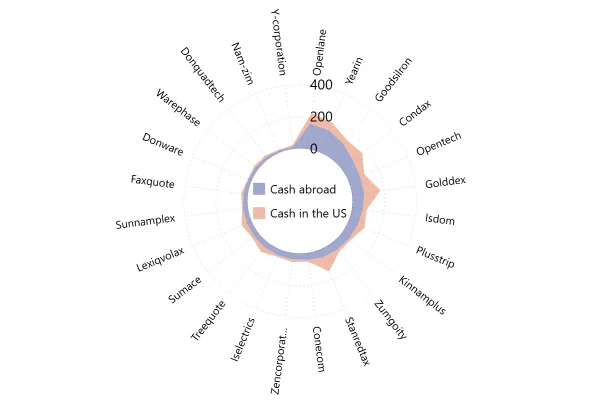

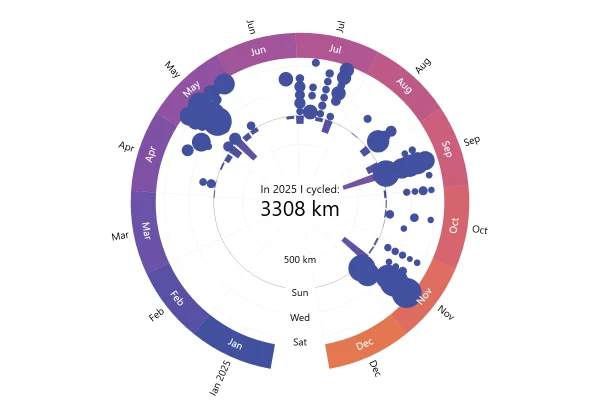

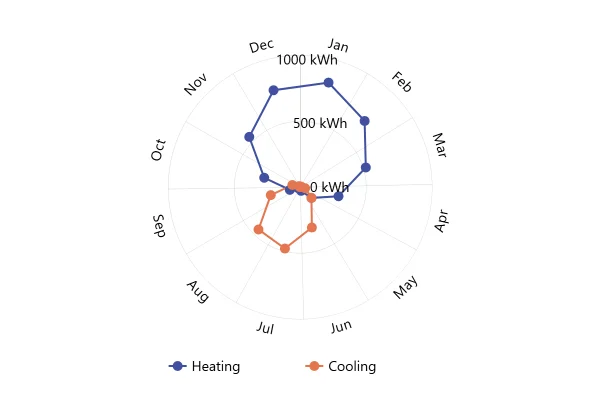

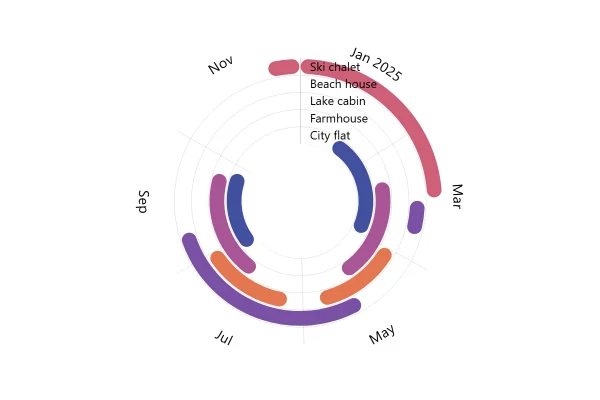

Radar Chart Visualizing Yearly Activities Radial Line Graph Radar with Date Axis Stacked Area Radar
